Flowchart: When to use it

The Quality Toolbook > Flowchart > When to use it

When to use it | How to understand it | Example | How to do it | Practical variations

<-- Previous | Next -->

When to use it

• Use it when analyzing or defining a process, to detail the actions and decisions within it.
• Use it when looking for potential problem points in a process.
• Use it when investigating the performance of a process, to help identify where and how it is best measured.
• Use it as a communication or training aid, to explain or agree the detail of the process.

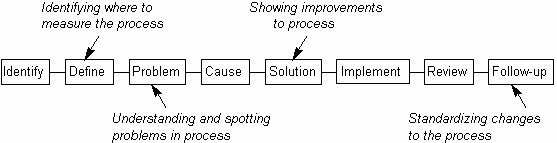

Fig. 1. Using the Flowchart in problem solving
